Our thermal imaging system includes the best in available, non military cameras, combined with powerful AI. This detection method allows for pinpoint accuracy of +- 0.5 degrees C from up to 9m (30ft) away.
Having a high temperature is a symptom of Covid-19 and is often the first symptom health care professionals will check. Help front-line workers and protect others by screening those entering your facility, business, airport, school or other point of contact.
Call for fever detection system
1-604-239-8982How it Works

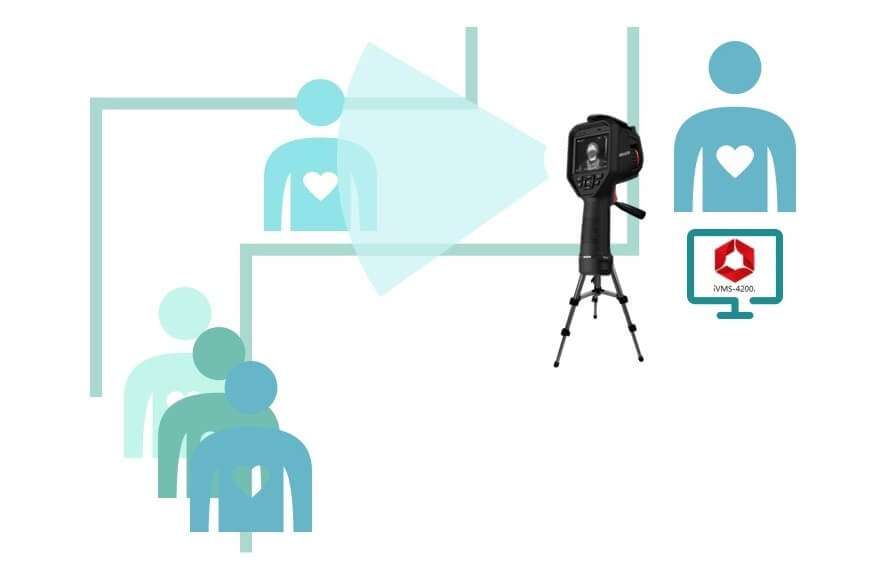

- Setup our table top thermal camera system in 15 to 20 minutes – no network or infrastructure required
- Staff, customers, guests, travellers or other patrons pass through the entry or lineup all while maintaining physical distance
- Should someone pass by who has a fever or high temperature, an audible alert sounds and that person can be taken for additional screening. The system can also be setup to send alerts to specific users phones or a central station for further action.
Key Features
- Process up to 30 individual temperatures with leading AI facial recognition technology
- Contactless – maintain distance while entering and don’t endanger staff
- Accurate at 9m (30ft) to +/- 0.5° C
- Fast tracking recognition – walk at a steady pace through the checkpoint
- Simple to setup and operate – can be pre configured and shipped
- Cost effective – A single deployment can free up staff at a health care facility and pay for itself in 1 week with the savings
- Give customers, staff and the public confidence you are providing the safest environment possible
Call for fever detection system
1-604-239-8982FAQs
Does the system detect disease or virus?
The camera system detects human body temperature. No camera system can detect what illness a person has but it does give an indication of potential symptoms. Anyone presenting with a fever should be secondarily screened and referred to a health professional.
Why did you choose this specific thermal camera system?
After investigating several thermal temperature monitoring products, we found that the reliability and accuracy of our thermal camera was the industry leader in non military (non nitrogen cooled) cameras. Other options are either industrial application (only accurate to +/- 5 degrees C) or are not cost effective. No back body is required to calibrate the camera which means additional cost savings.
Is the system easy to operate? Can you set it up at my site?
Yes to both. Training for system use can be done on site or remotely. It is very easy to physically setup on a table top and simple to operate. If needed, a technician can provide initial training at your location or one of our partner guard organizations can supply an on-site operator. Let us know your specific needs and we will do our part to hep.
What is the cost?
Package prices vary. Our thermal imaging package is less expensive than most systems available in North America. Its value is second to none. Labour cost savings alone for business or government applications should provide payback of a kit within 1 to 3 months. Larger organizations such as hospitals could realize the labour cost savings within days.
Is this suitable for public retail use?
Generally, yes. At this time, we are only deploying our imaging system within Canada. Depending on your jurisdiction there may be specific regulations that apply to use. Contact us for information.
Are there options for business use?
Yes. Though government organizations commonly deploy thermal fever screening systems around the world, many businesses are utilizing this technology. We are happy to assist with leasing and purchase options.
Thermal Imaging Camera Spec
Thermal Module
Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
Max. Resolution | 384 × 288 |
Pixel Interval | 17μm |
Response Waveband | 8 μm to 14 μm |
NETD (Noise Equivalent Temperature Difference) | ≤ 35 mk (@25 °C,F# = 1.0) |
Lens (Focal Length) | 15 mm |
IFOV | 1.13 mrad |
Field of View | 24.5° × 18.5° (H × V) |
Min. Focusing Distance | 2.5 m |
Aperture | Th |
Optical Module
Max. Image Resolution | 2688 × 1520 |
Image Sensor | 1/2.7" Progressive Scan CMOS |
Min. Illumination | Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON) |
Shutter Speed | 1 s to 1/100,000 s |
Lens (Focal Length) | 6 mm |
Field of View | 51.7° × 28° (H × V) |
WDR | 120 dB |
Day & Night | IR cut filter with auto switch |
Image Function
Bi-spectrum Image Fusion | Display the details of optical channel on thermal channel |
Picture in Picture | Display partial image of thermal channel on the full screen of optical channel |
Smart Function
Temperature Measurement | 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line). |
Temperature Range | 30 °C to + 45 °C |
Temperature Accuracy | ± 0.5 °C |
Power | 24 VAC± 25%, 12 VDC± 25%, two-core terminal block PoE (802.3af, class 3) |
Power Consumption | 18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W |
Working Temperature/Humidity | Temperature: 10 °C to 35 °C（Indoor and windless environment use only） Humidity: 95% or less |
Protection Level | IP66 Standard TVS 6000V lightning protection, surge protection, voltage transient protection |
Dimensions | 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65") |
Weight | Approx. 1.82 kg (4.01 lb) |
Disclaimer
Our system is not intended to diagnose or treat any disease or illness. Increased body temperature does not indicate a specific illness or Covid-19. Always seek professional medical attention if you have a fever or symptoms.
